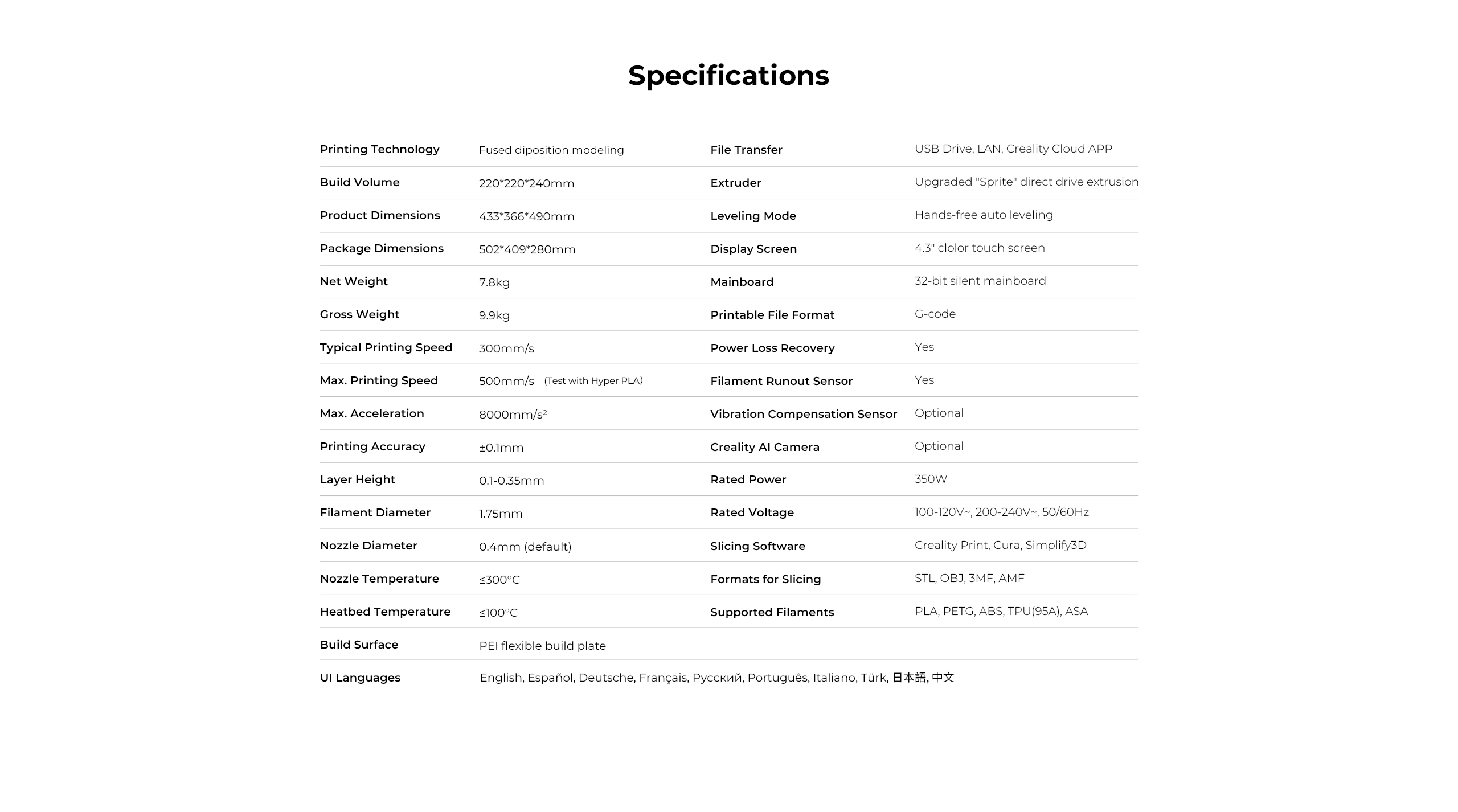

Ender 3 V3 KE 3D Printer Specification
Printing Technology: FDM
Build Volume: 220*220*240mm
Product Dimensions: 433*366*490mm
Package Dimensions: 502*409*280mm
Net Weight: 7.8kg
Gross Weight: 9.9kg
Typical Printing Speed: 300mm/s
Max. Printing Speed: 500mm/s (Test with Hyper PLA)
Max. Acceleration: 8000mm/s²
Printing Accuracy:±0.1mm
Layer Height:0.1-0.35mm
Filament Diameter: 1.75mm
Nozzle Diameter: 0.4mm (default)
Nozzle Temperature: ≤300℃
Heatbed Temperature: ≤100℃
Build Surface: PEI flexible build plate
File Transfer: USB drive, LAN, Creality Cloud APP
Extruder: Upgraded “Sprite” direct drive extrusion
Leveling Mode: Hands-free auto leveling
Display Screen: 4.3″ color touch screen
Mainboard: 32-bit silent mainboard
Printable File Format: G-code
Power Loss Recovery: Yes
Filament Runout Sensor : Yes
Vibration Compensation Sensor :Optional
Creality AI Camera: Optional
Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
Rated Power: 350W
Slicing Software: Creality Print, Cura, Simplify3D
Formats for Slicing: STL, OBJ, 3MF, AMF
Supported Filaments: PLA, PETG, ABS, TPU(95A), ASA
Creality OS, Smart Beyond Limits

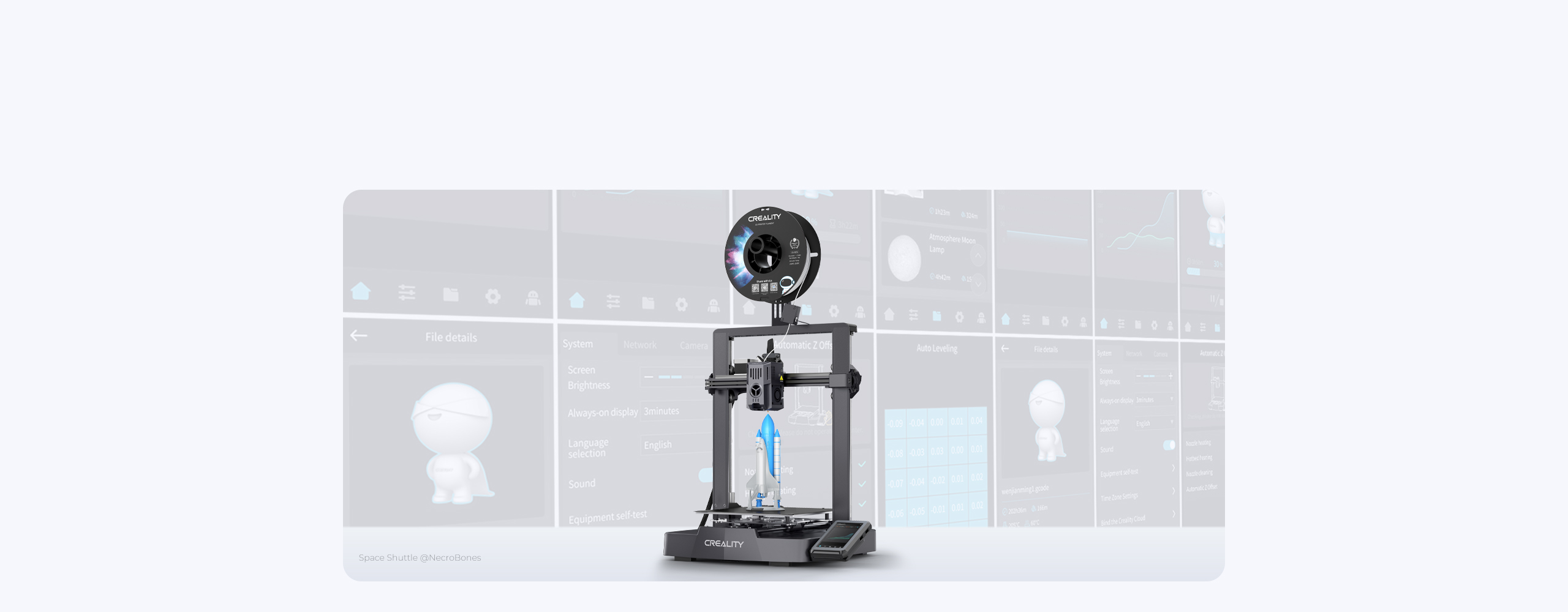

Smart UI & Auto Calibration
Touch UI with an intuitive tab bar;
Smart self-test for Z offset, auto leveling, and more with just one tap;
Real-time model preview, and vivid motion graphics of printing parameters.

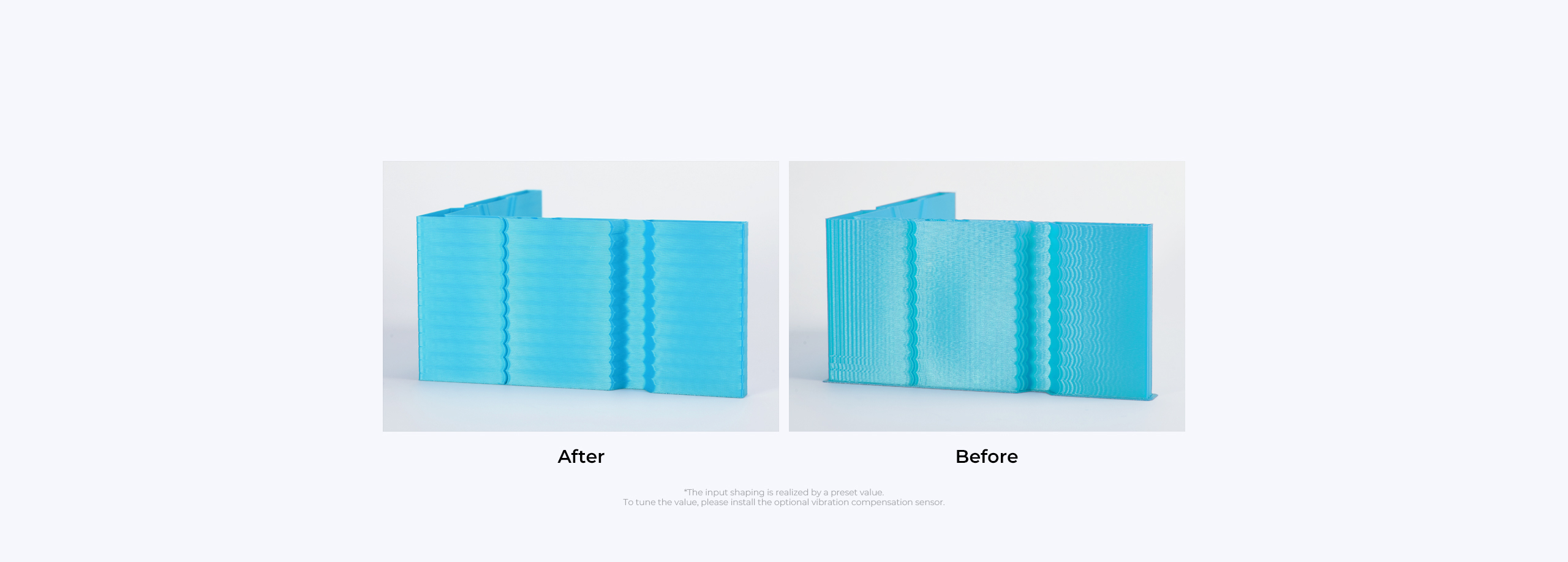

Smart Algorithms, Better Print Quality
Input shaping*: Mitigates the printer's vibrations for minimal ringing or ghosting.
Motion advance: Optimizes the feeding flow for fewer blobs and oozes.

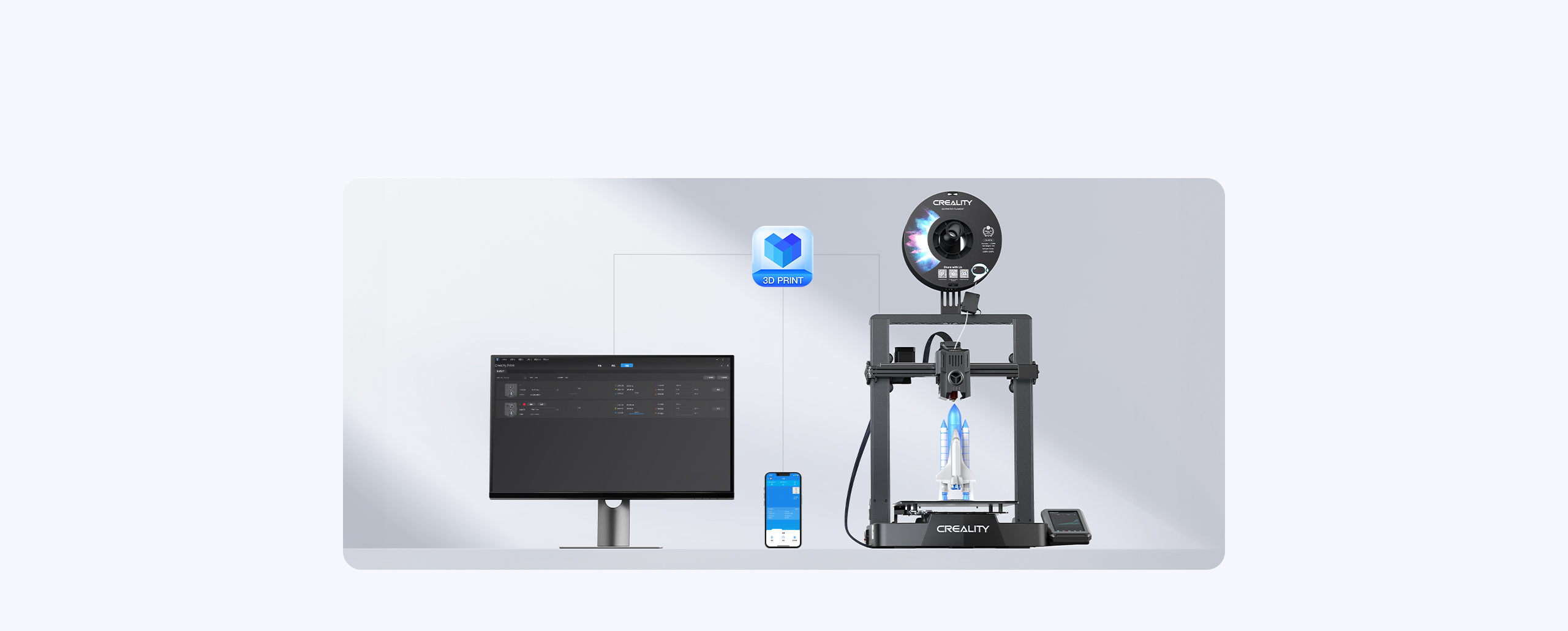

Control and Monitor Smartly from Anywhere
The fun goes beyond the limits of space with LAN printing and cloud printing.
Every aspect of your 3D printer can be controlled from a PC (Creality Print)
or a phone (Creality Cloud APP) via WiFi.
With multiple printers online, you can manage them efficiently as a print farm.

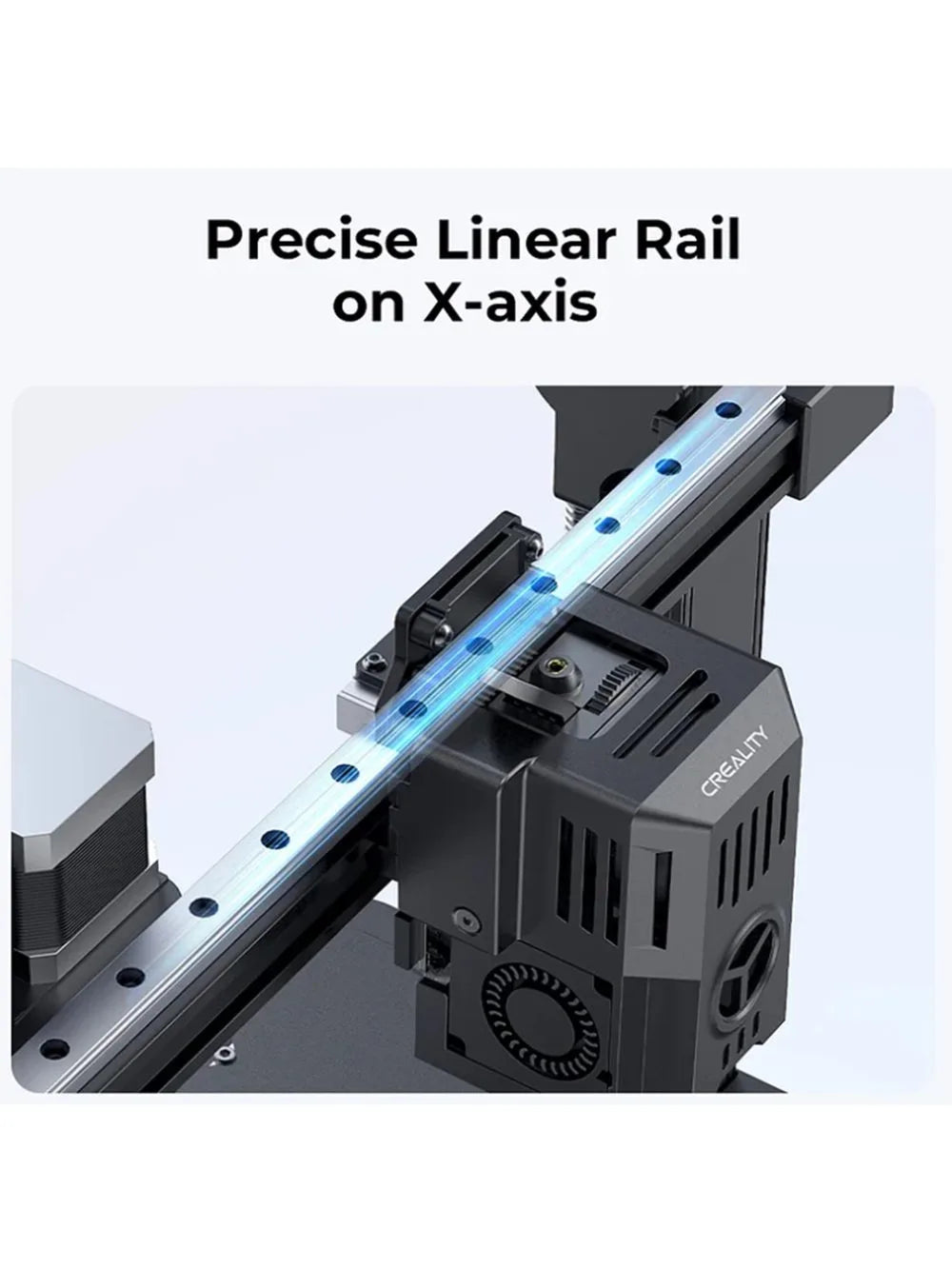

X-axis Linear Rail,
Ultra-smooth Motion
The precise linear rail on the X-axis has a carriage slide containing ball bearings, making each move accurate, steady, and frictionless (0.04 friction coefficient*).
Built out of stiff steel,
it will stay as new even after long-time use.
*Data from Creality Lab.

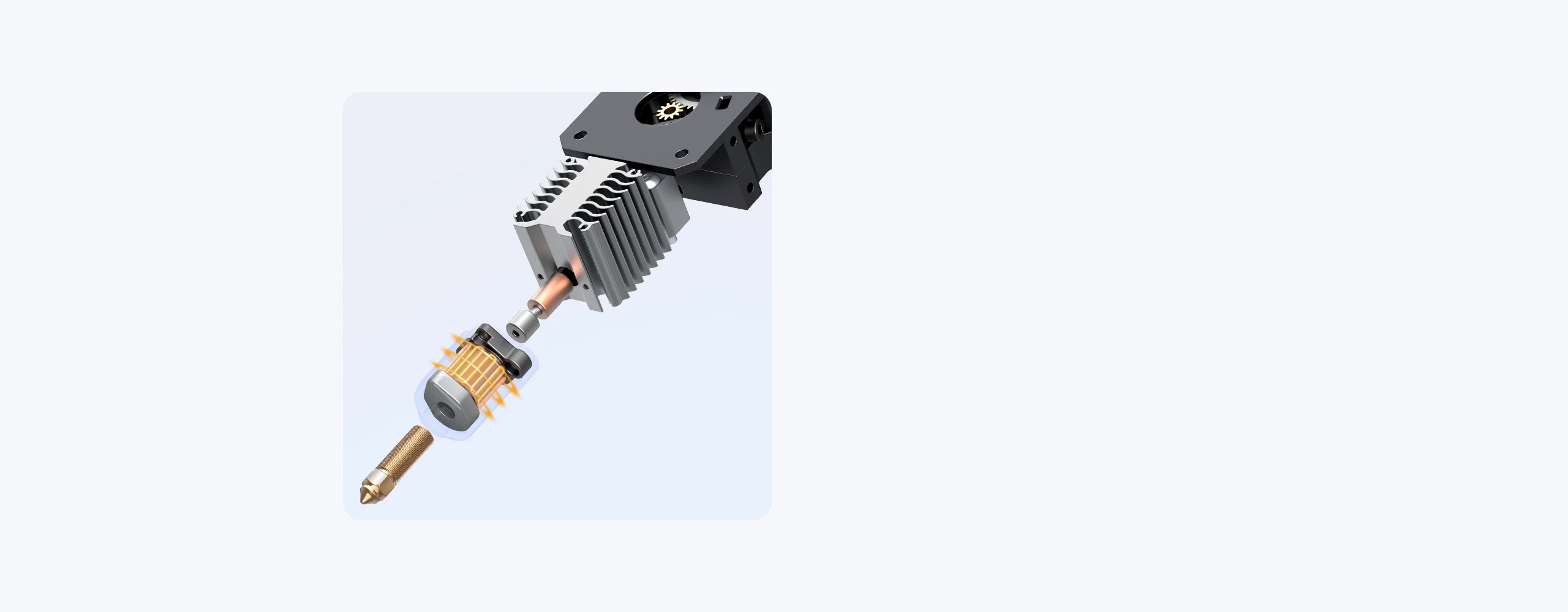

Superior Hotend
to Meet Greater Challenges
60W ceramic heater, able to fully melt
filaments for high-speed printing;
Bi-metal (copper+titanium alloys) heatbreak, preventing thermal creep;
Copper nozzle, enabling 300°C* printing.
*Data from Creality Lab. The test is conducted at a 25℃ room temperature.

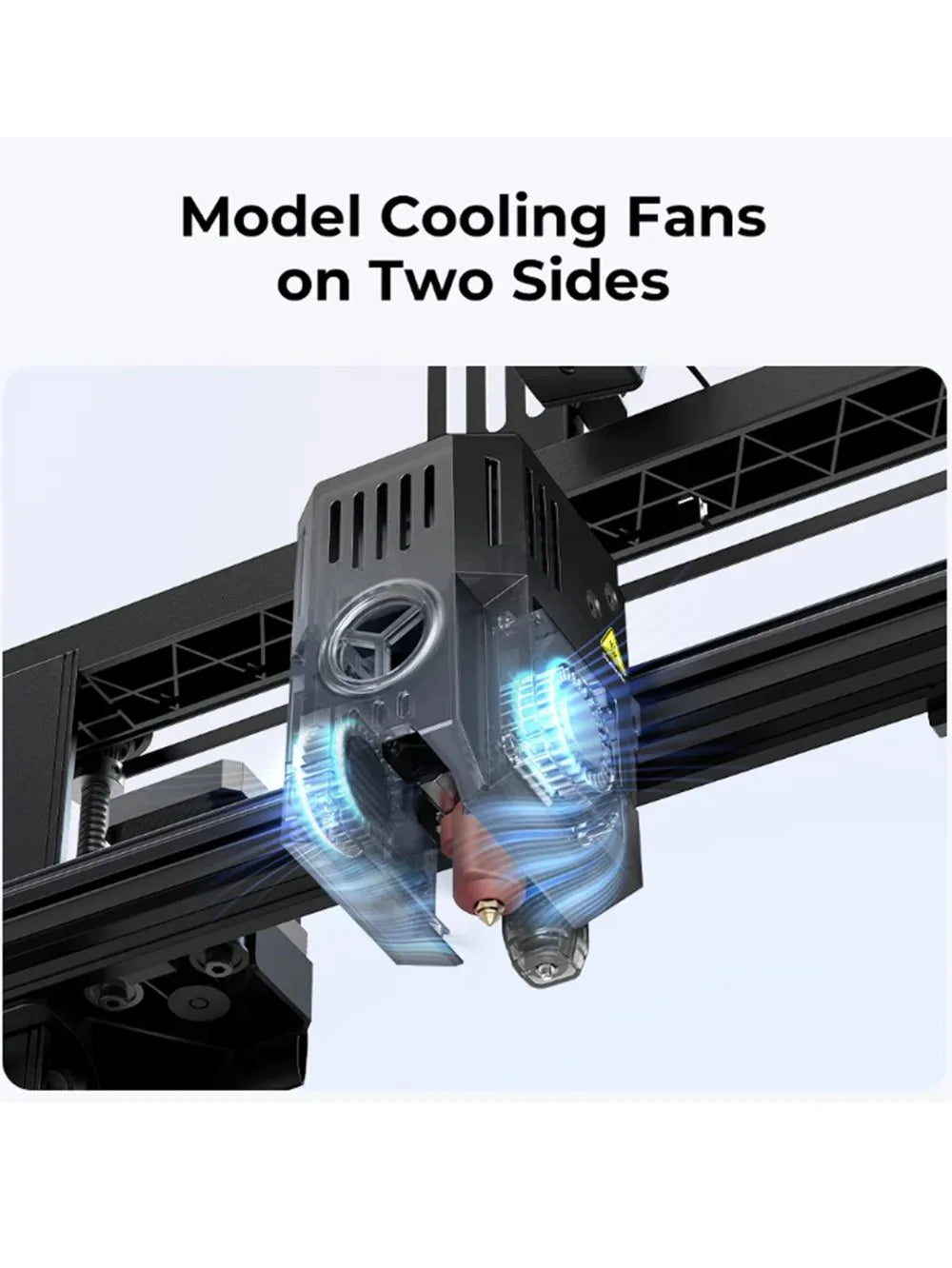

Double Fans
for Rapid Model Cooling
Each side of the printhead has a model cooling fan.
Together, they cool the freshly printed section rapidly and evenly. Now, your prints are always in good shape.

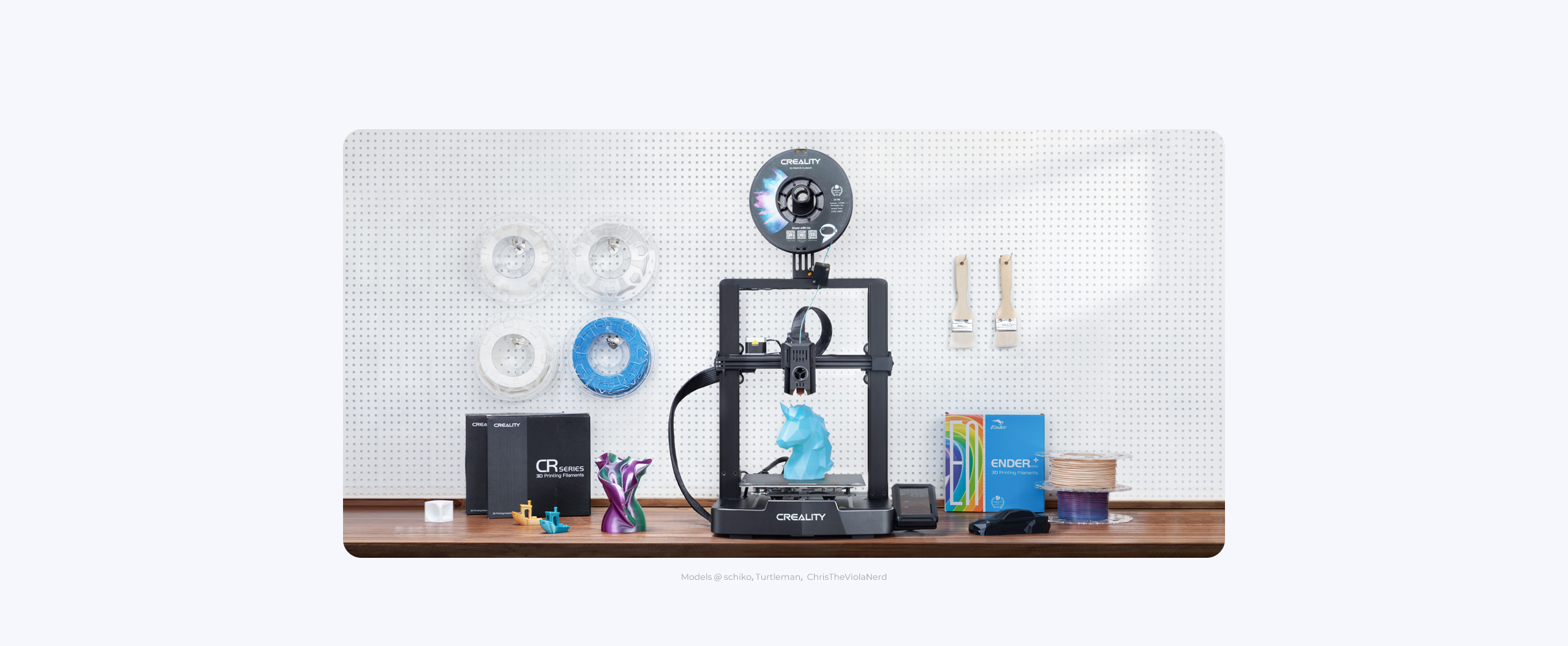

Still Compact but Offers Much More
It occupies less space, weighs less, but has richer functions,
giving you more liberty to play out creative desire.

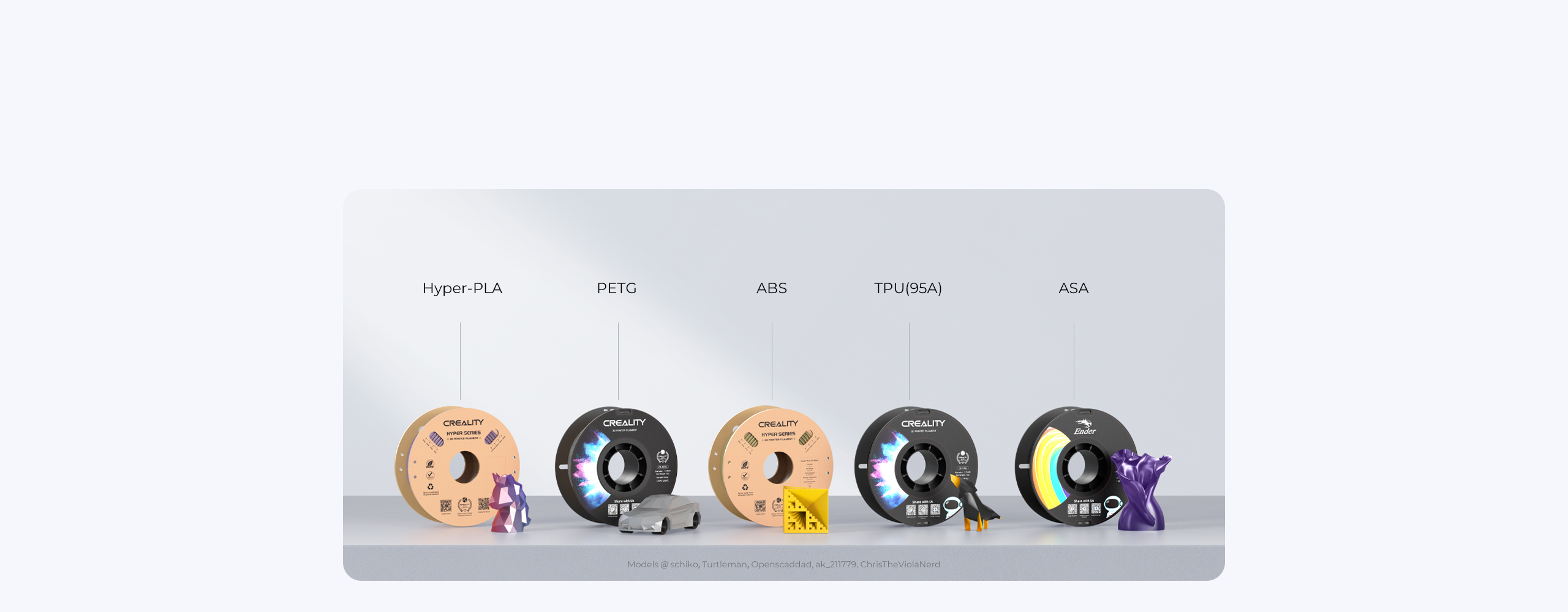

More Filaments to Print With
Ender-3 V3 KE can handle Hyper PLA, PETG, ABS, TPU(95A) and ASA filaments.
Just pick the right one to print whatever daily item, part, or product you like.
Ender-3 V3 KE prints faster and better with Creality Hyper PLA.
Get Printing Started Like a Breeze
Quick Assembly; Self-test for Calibration;
Auto Filament Loading
